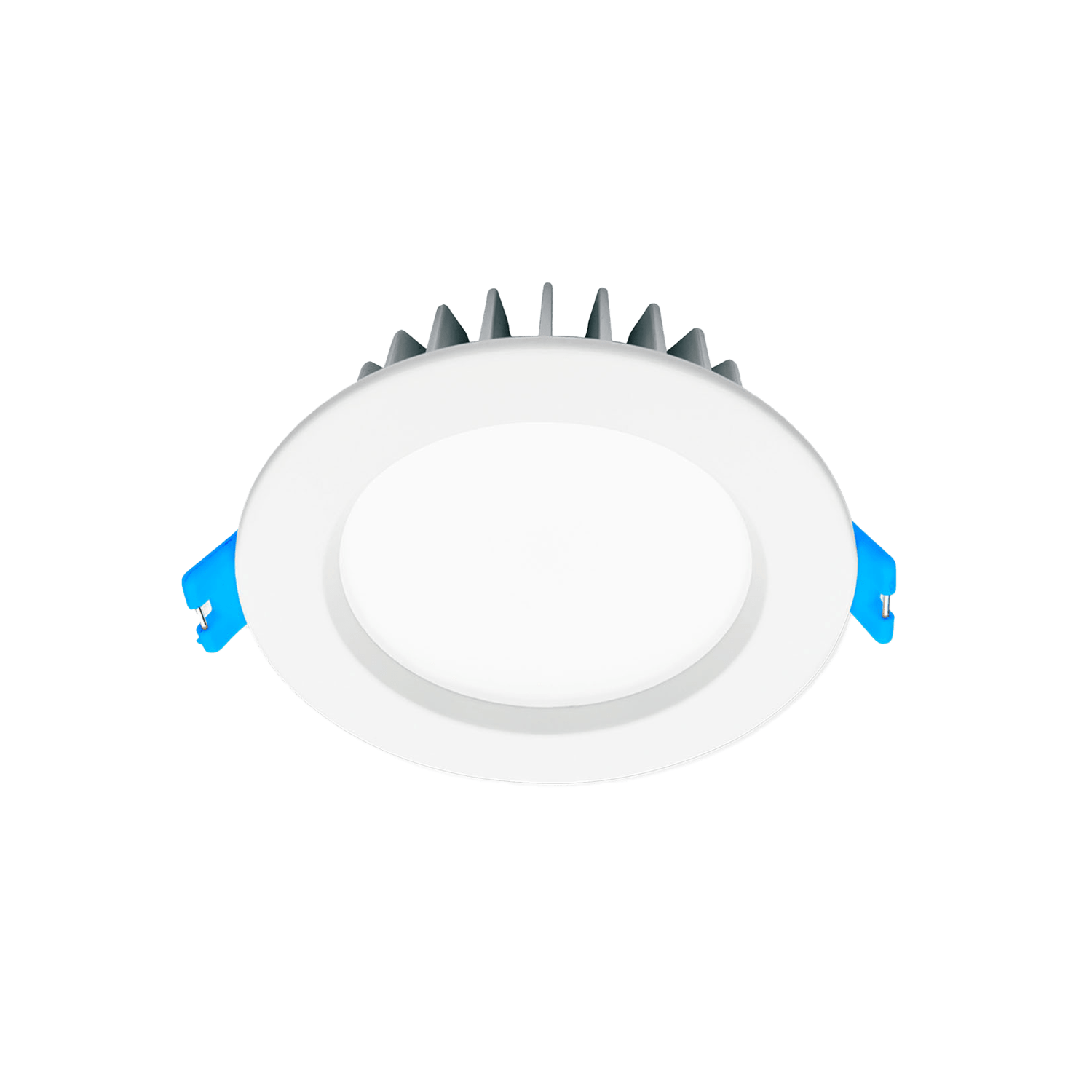

IC-F DRIVER LED DOWNLIGHT
$35.22
IC-F DRIVER LED DOWNLIGHT
[fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL808 TC[/fusion_highlight]
[fusion_checklist icon=”fa-check fas” iconcolor=”” circle=”” circlecolor=”#46aee3″ size=”20px” divider=”” divider_color=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””]
[fusion_li_item icon=””]Die-cast aluminium body[/fusion_li_item]
[fusion_li_item icon=””]Powder coated finish[/fusion_li_item]
[fusion_li_item icon=””]Opal acrylic diffuser[/fusion_li_item]
[fusion_li_item icon=””]Trailing edge dimmable driver included[/fusion_li_item]
[fusion_li_item icon=””]Extra large terminals in driver[/fusion_li_item]
[fusion_li_item icon=””]Select colour temperature with DIP switch[/fusion_li_item]
[fusion_li_item icon=””]Quick connect plug between driver and fitting[/fusion_li_item]
[fusion_li_item icon=””]Flex & plug included[/fusion_li_item]
[fusion_li_item icon=””]IP44[/fusion_li_item]
[fusion_li_item icon=””]Ta: -20 to 40°C[/fusion_li_item]
[fusion_li_item icon=””]IC-F Rating: Abutted & Covered[/fusion_li_item]
[fusion_li_item icon=””]Lifespan: 50,000 Hours @L70 Ta 25°C[/fusion_li_item]
[fusion_li_item icon=””]5 year warranty[/fusion_li_item]
[fusion_li_item icon=””]Double insulation[/fusion_li_item]
[/fusion_checklist]
| MODEL |
LED Downlight 10W 102mm Trim Colour Selectable Black IC-F Driver ,LED Downlight 10W 102mm Trim Colour Selectable Satin Nickel IC-F Driver |
|---|---|
| CUT OUT SIZE (Ø mm) |
90 |
| KEY FEATURES |
DIMMING OPTION ,IC-F DRIVER ,TRI-COLOUR-IN-1 |
| INSTALLATION |
RECESSED |
| INPUT |
230-240V(AC) |
| WATTAGE (W) |
10 |
| LUMEN |
750 ,800 ,850 |
| COLOUR TEMPERATURE |
TRI-COLOUR |
| BEAM ANGLE (°) |
100 |
| FITTING COLOUR |
BLACK ,SATIN NICKEL ,WHITE |
| DIMMABLE |
YES |
| CRI (>) |
80 |
| IP RATING |
IP44 |
| FLEX&PLUG |
Flex&Plug |
| IC RATING |
IC-F |
| DOUBLE INSULATION |
YES |
| LIGHT DIRECTION |
FIXED |
| GLARE CONTROL |
No |
Description
| MODEL | INPUT | POWER | LUMEN | COLOUR TEMPERATURE | BEAM ANGLE | CRI | DIMENSIONS (Ø×H) | CUT OUT SIZE (Ø) | FITTING COLOUR | CARTON QUANTITY |
|---|---|---|---|---|---|---|---|---|---|---|
| DL188 TC SN | 230V | 10W | 750/850/800lm | 3000/4000/5700K | 100° | >90 | 102.5 X 35 mm | 90 mm | Satin Nickel | 32 |
| DL188 TC BK | 230V | 10W | 750/850/800lm | 3000/4000/5700K | 100° | >90 | 102.5 X 35 mm | 90 mm | Black | 32 |
DIMMING: Analogue dimming (1-10V) Digital dimming (DALI, DSI)
DATASHEET MERCURY GDL808TC SDOC GDL808 TC IES GDL808 TC 3000K GDL808 TC 4000K GDL808 TC 5700K LM80 GDL808 TC INSTALLATION GUIDE INSTALLATION GUIDE
