UGR<19 & WATTAGE SELECTABLE LED BATTEN
[fusion_highlight color=”” text_color=”#000000″ rounded=”yes” class=”” id=””] GBT507 CW [/fusion_highlight]
[fusion_checklist icon=”fa-check fas” iconcolor=”” circle=”” circlecolor=”#46aee3″ size=”20px” divider=”” divider_color=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””]
[fusion_li_item icon=””]Robust steel and polycarbonate construction[/fusion_li_item]
[fusion_li_item icon=””]Steel body, white gloss powder coated finish[/fusion_li_item]
[fusion_li_item icon=””]Prismatic diffuser[/fusion_li_item]
[fusion_li_item icon=””]Constant current LED driver fitted[/fusion_li_item]
[fusion_li_item icon=””]SMD LEDs on metal core PCB[/fusion_li_item]
[fusion_li_item icon=””]Non-dimmable[/fusion_li_item]
[fusion_li_item icon=””]IP20 suitable for indoor use only[/fusion_li_item]
[fusion_li_item icon=””]IK06[/fusion_li_item]
[fusion_li_item icon=””]Ta: -20 to +40°C[/fusion_li_item]
[fusion_li_item icon=””]LED lifespan: 50000 Hours @L70, Ta 25°C[/fusion_li_item]
[fusion_li_item icon=””]5 year warranty[/fusion_li_item]
EMERGENCY
[fusion_li_item icon=”hospital-symbol”]Intelligent automatic recharging function[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]Constant current mode[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]3 hour emergency operation[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]Over discharge protection[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]LED charge status display[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]Test switch with self-test function[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]Ta: 0 to +40°C[/fusion_li_item]
[fusion_li_item icon=”hospital-symbol”]2 year warranty for BT088/120 CW EM / BT088/150 CW EM[/fusion_li_item]
[/fusion_checklist]
| MODEL |
LED BATTEN SELECTABLE WATT (20-40W) IP20 4 FT 4000K UGR<19 NON DIM ,EMERGENCY LED BATTEN SELECTABLE WATT (20-40W) IP20 4 FT 4000K UGR<19 NON DIM ,LED BATTEN SELECTABLE WATT (40-60W) IP20 5 FT 4000K UGR<19 NON DIM ,EMERGENCY LED BATTEN SELECTABLE WATT (40-60W) IP20 5 FT 4000K UGR<19 NON DIM |
|---|---|
| KEY FEATURES |
ADJUSTABLE WATTAGE ,DIMMING OPTION ,EM OPTION |
| INSTALLATION |
SURFACE MOUNTED |
| INPUT |
230-240V(AC) |
| WATTAGE (W) |
20 ,28 ,32 ,40 ,49 ,53 ,60 |
| LUMEN |
2100 ,2600 ,3000 ,3800 ,4200 ,4400 ,4500 ,4800 ,5600 |
| COLOUR TEMPERATURE |
COOL WHITE |
| BEAM ANGLE (°) |
60 |
| FITTING COLOUR |
WHITE |
| DIMMABLE |
NO |
| CRI (>) |
80 |
| IP RATING |
IP20 |
| ADD FEATURES |
EM OPTION & SENSOR OPTION |
| UGR (<) |
19 |
| IK RATING |
IK06 |
Description

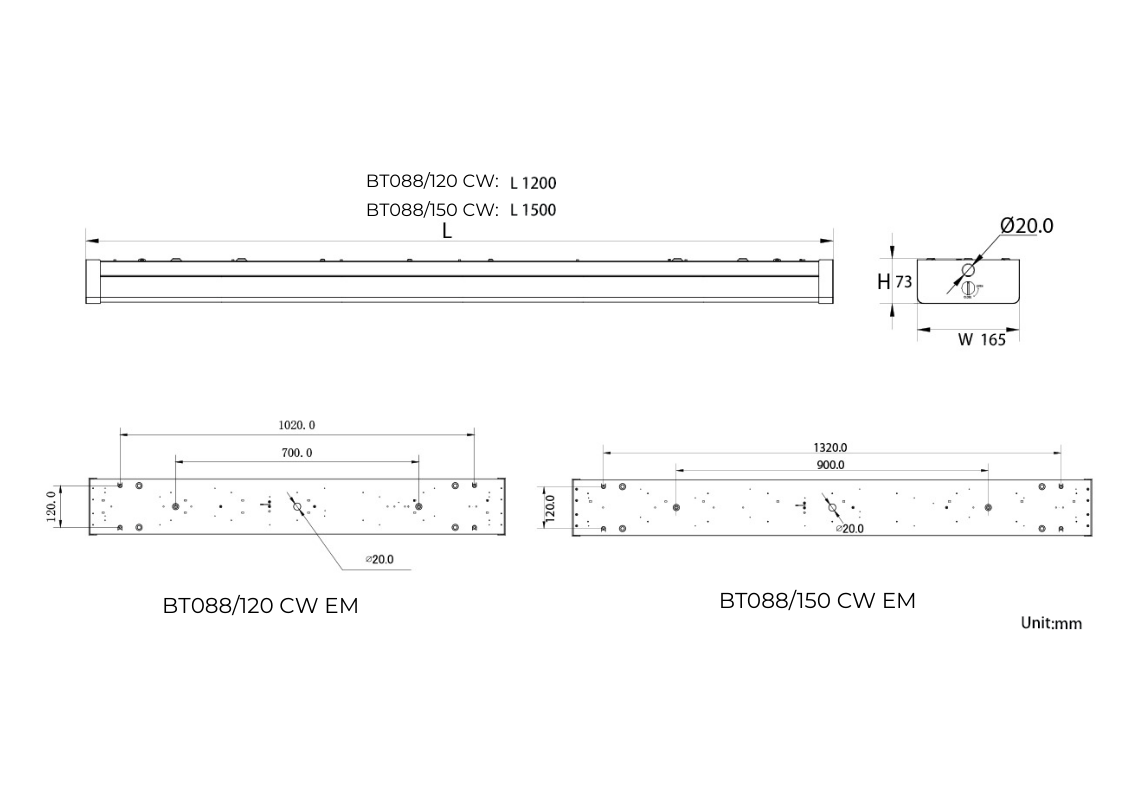

| MODEL | INPUT | POWER | LUMEN | COLOUR TEMPERATURE | CRI | BEAM ANGLE | DIMENSIONS (L×W×H) | FITTING COLOUR | CARTON QUANTITY |
|---|---|---|---|---|---|---|---|---|---|
| BT088/120 CW | 230V | Max 40W | Max 3800lm | 4000K | >82 | 60° | 1200 x 165 x 73 mm | White | 4 |
| BT088/120 CW EM | 230V | Max 40W(2.3W)* | Max 3800lm(340lm)* | 4000K | >82 | 60° | 1200 x 165 x 73 mm | White | 4 |
| BT088/150 CW | 230V | Max 60W | Max 5600lm | 4000K | >82 | 60° | 1500 x 165 x 73 mm | White | 4 |
| BT088/150 CW EM | 230V | Max 60W (2.3W)* | Max 5600lm (340lm)* | 4000K | >82 | 60° | 1500 x 165 x 73 mm | White | 4 |
*When running on EM backup Wattage is 2.3w & Lumen 340lm
DIMMING: – Analogue dimming (Trailing edge, 1~10V) – Digital dimming (DSI, DALI) Microwave motion sensor: SMS800
DATASHEET GBT507 CW SDOC GBT507 CW PHOTO ARCHIVE GBT507 CW IES GBT507 120 CW (20W@4000k) GBT507 120 CW (40W@4000k) GBT507 150 CW (40W@4000k) GBT507 150 CW (60W@4000k) INSTALLATION GUIDE GBT507 CW
