BI-COLOUR AND WATTAGE SELECTABLE LED BATTEN
Price range: $173.33 through $449.69
TRI-COLOUR SLIM LED BATTEN
Price range: $49.35 through $100.78

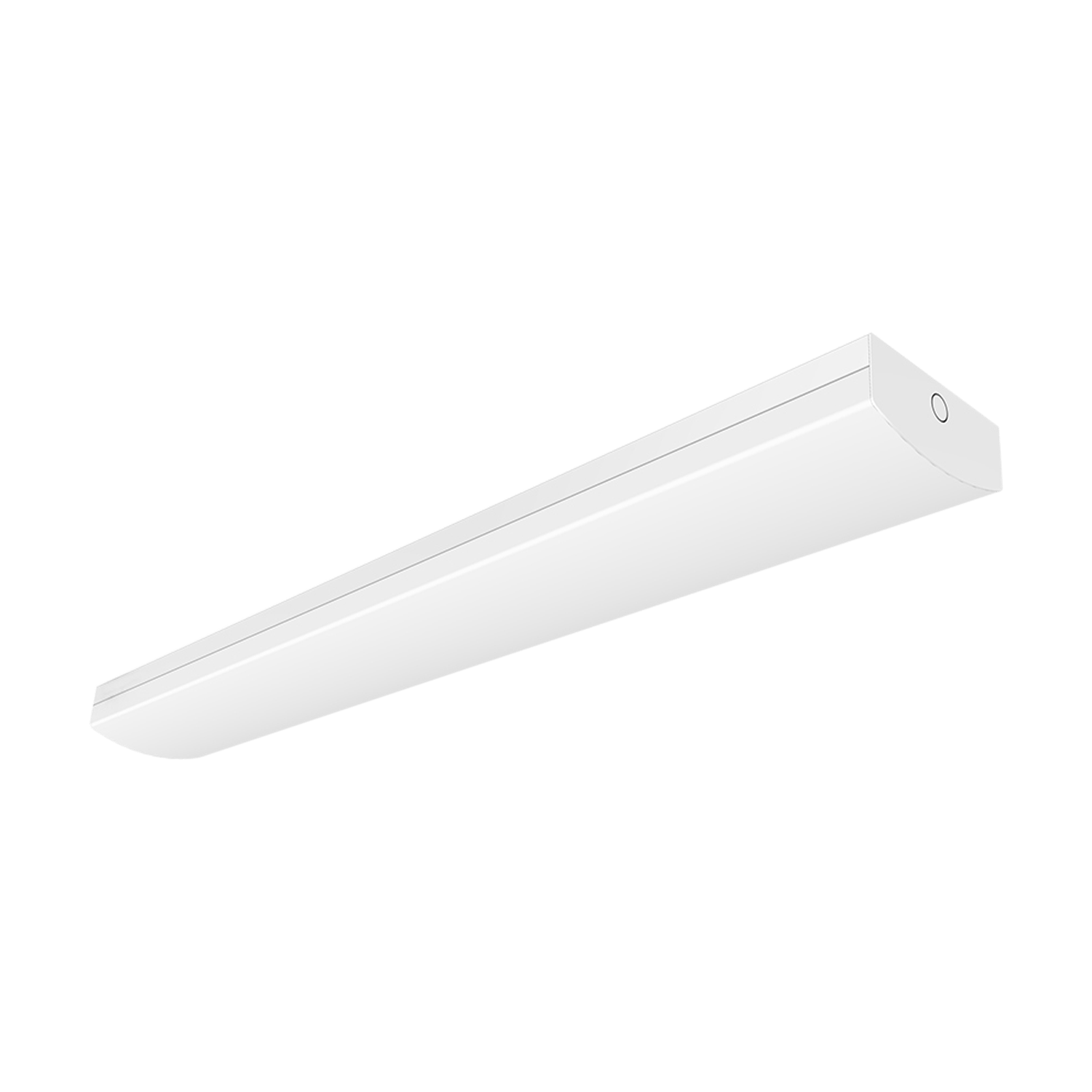

WIDE SINGLE COLOUR LED BATTEN
Price range: $125.84 through $136.59
[fusion_highlight color=”” text_color=”#000000″ rounded=”yes” class=”” id=””] GBT504
[/fusion_highlight]
[fusion_checklist icon=”fa-check fas” iconcolor=”” circle=”” circlecolor=”#46aee3″ size=”20px” divider=”” divider_color=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””]
[fusion_li_item icon=””]Wide steel body[/fusion_li_item]
[fusion_li_item icon=””]Powder coated finish[/fusion_li_item]
[fusion_li_item icon=””]Opal polycarbonate diffuser[/fusion_li_item]
[fusion_li_item icon=””]Constant current LED driver fitted[/fusion_li_item]
[fusion_li_item icon=””]Large terminal block installed[/fusion_li_item]
[fusion_li_item icon=””]Non-dimmable[/fusion_li_item]
[fusion_li_item icon=””]IP20 suitable for indoor use only[/fusion_li_item]
[fusion_li_item icon=””]Ta: -20 to +40°C[/fusion_li_item]
[fusion_li_item icon=””]LED lifespan: 50000Hrs @ L70, Ta 25°C[/fusion_li_item]
[fusion_li_item icon=””]3 year warranty[/fusion_li_item]
[/fusion_checklist]
| MODEL |
LED BATTEN SELECTABLE WATT (20-40W) IP20 4 FT 4000K NON DIM ,LED BATTEN SELECTABLE WATT (40-60W) IP20 5 FT 4000K NON DIM |
|---|---|
| KEY FEATURES |
ADJUSTABLE WATTAGE ,DIMMING OPTION ,RIPPLE FREE |
| INSTALLATION |
SURFACE MOUNTED |
| INPUT |
230-240V(AC) |
| WATTAGE (W) |
40 ,60 |
| LUMEN |
4200 ,6300 |
| COLOUR TEMPERATURE |
COOL WHITE |
| BEAM ANGLE (°) |
120 |
| FITTING COLOUR |
WHITE |
| DIMMABLE |
NO |
| CRI (>) |
80 |
| IP RATING |
IP20 |
Description

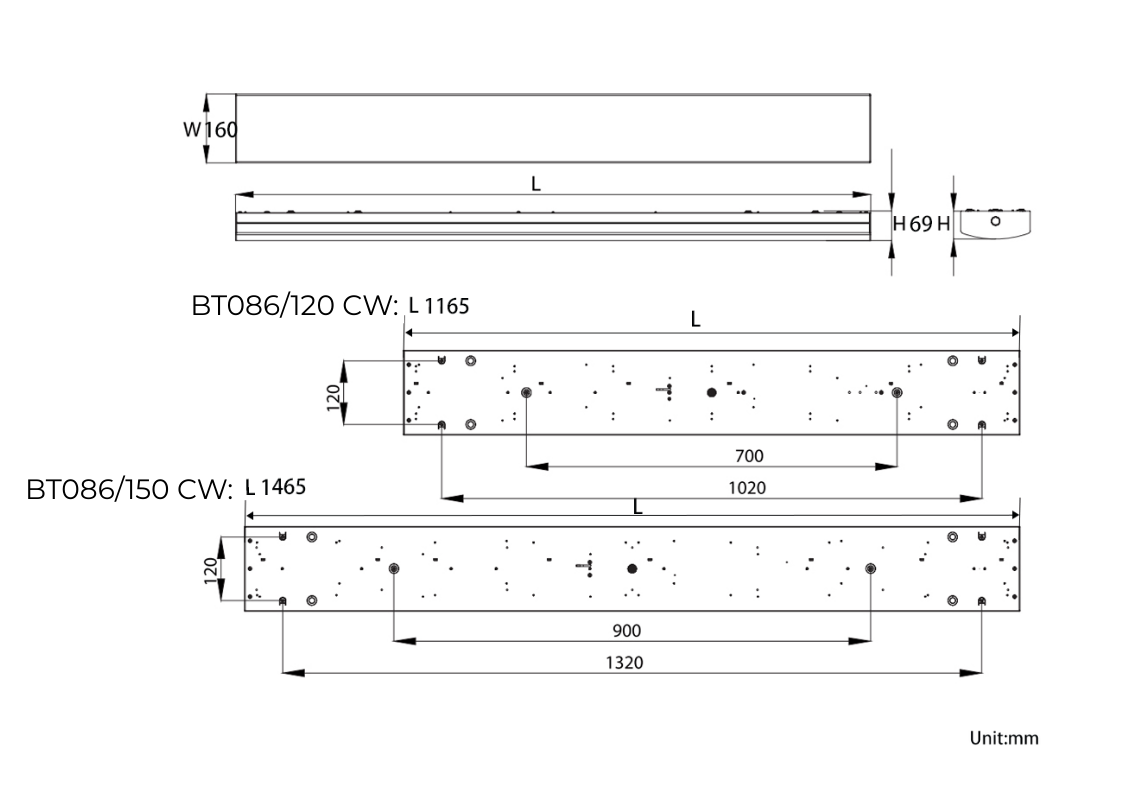

| MODEL | INPUT | POWER | LUMEN | COLOUR TEMPERATURE | CRI | BEAM ANGLE | DIMENSIONS (L×W×H) | FITTING COLOUR | CARTON QUANTITY |
|---|---|---|---|---|---|---|---|---|---|
| BT086/120 CW | 230V | 40W | 4200 lm | 4000K | >80 | 120° | 1165 x 160 x 69 mm | White | 6 |
| BT086/150 CW | 230V | 60W | 6300 lm | 4000K | >80 | 120° | 1465 x 160 x 69 mm | White | 6 |
