UGR<16 LOWGLARE COB LED SPOTLIGHT

Price range: $94.62 through $174.30

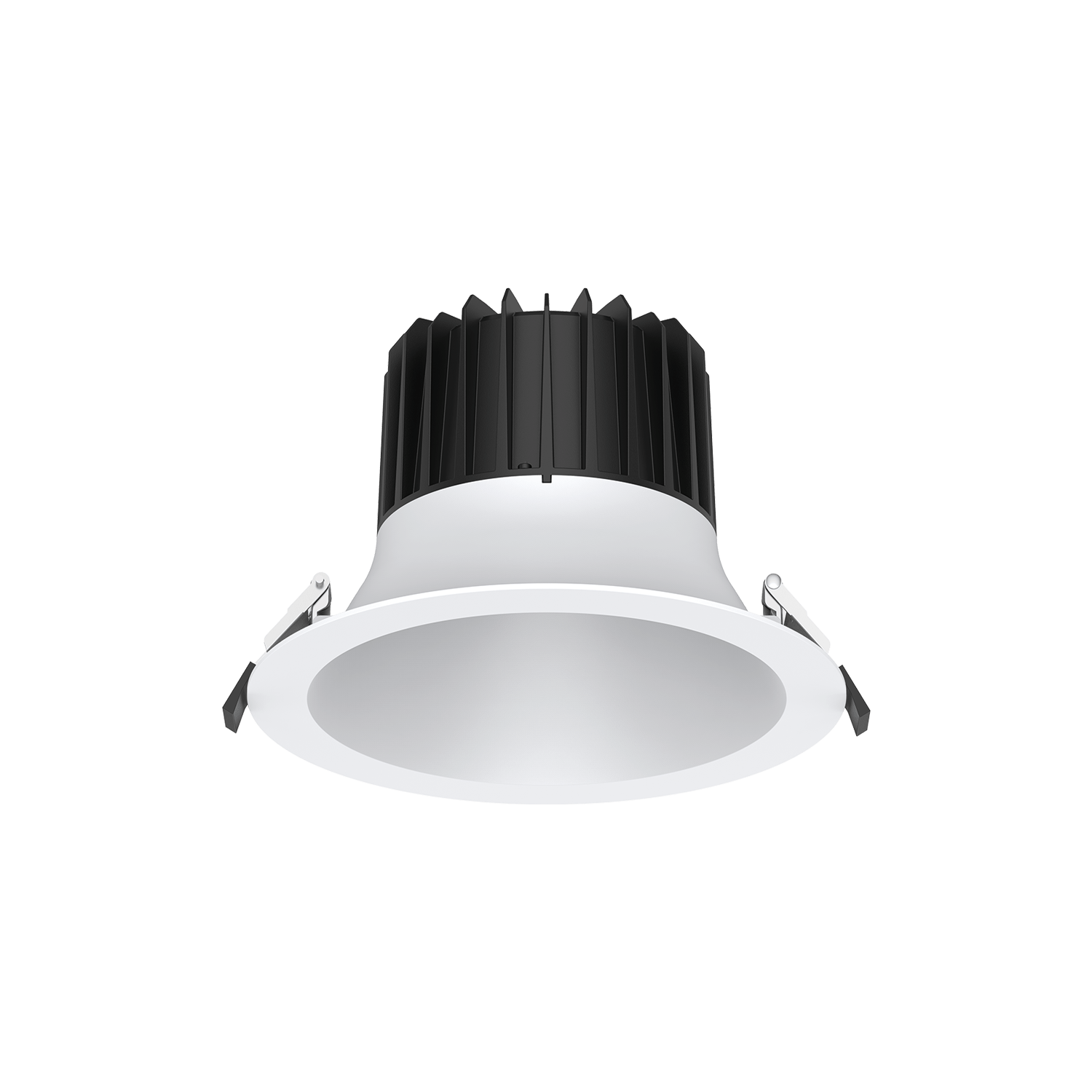

UGR<16 LOWGLARE COB LED SPOTLIGHT

[fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL361[/fusion_highlight] [fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL362[/fusion_highlight]  [fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL363[/fusion_highlight]  [fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL364[/fusion_highlight]  [fusion_highlight text_color=”#000000″ rounded=”yes” ]GDL365[/fusion_highlight]

[fusion_checklist icon=”fa-check fas” iconcolor=”” circle=”” circlecolor=”#46aee3″ size=”20px” divider=”” divider_color=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””]

[fusion_li_item icon=””]Die-cast aluminium body[/fusion_li_item]

[fusion_li_item icon=””]Powder coated finish[/fusion_li_item]

[fusion_li_item icon=””]Triac dim LED driver included (not coverable)[/fusion_li_item]

[fusion_li_item icon=””]Power factor: 0.9[/fusion_li_item]

[fusion_li_item icon=””]Bridgelux COB LED chips[/fusion_li_item]

[fusion_li_item icon=””]Colour matching 3 MacAdam steps[/fusion_li_item]

[fusion_li_item icon=””]LED lifespan: 55000 hours @ L80 B10, Ta 25°C[/fusion_li_item]

[fusion_li_item icon=””]Ta: -20°C to +40°C[/fusion_li_item]

[fusion_li_item icon=””]IP40[/fusion_li_item]

[fusion_li_item icon=””]Non IC[/fusion_li_item]

[fusion_li_item icon=””]Dimmable[/fusion_li_item]

[fusion_li_item icon=””]UGR<16[/fusion_li_item]

[fusion_li_item icon=””]Flex and plug[/fusion_li_item]

[fusion_li_item icon=””]Double insulation[/fusion_li_item]

[fusion_li_item icon=””]5-year warranty[/fusion_li_item]

[/fusion_checklist]

MODEL

LED DOWNLIGHT 13W 150mm TrimDEEP RECESSED IP40 4000K DIM WHITE

,

LED DOWNLIGHT 18W 170mm Trim DEEP RECESSED IP40 4000K DIM WHITE

,

LED DOWNLIGHT 25W 199mm Trim DEEP RECESSED IP40 4000K DIM WHITE

,

LED DOWNLIGHT 35W 240mm Trim DEEP RECESSED IP40 4000K DIM WHITE

MODEL

COLOR

WHITE

CUT OUT SIZE (Ø mm)

125

,

145

,

165

,

210

,

90

KEY FEATURES

DIMMING OPTION

,

HIGH CRI

,

UGR<16

INSTALLATION

RECESSED

INPUT

230V

WATTAGE (W)

10

,

13

,

18

,

25

,

35

LUMEN

1380

,

1950

,

2750

,

3650

,

810/860/950

COLOUR TEMPERATURE

3000/4000/5700

,

COOL WHITE

BEAM ANGLE (°)

60

FITTING COLOUR

WHITE

DIMMABLE

YES

CRI (>)

90

IP RATING

IP40

FLEX&PLUG

Flex&Plug

IC RATING

NON-IC

DOUBLE INSULATION

YES

LIGHT DIRECTION

FIXED

SKU: DL170/1/2/3 CW WH Category: Tags: ,
Description
MODEL NO. INPUT VOLTAGE (V) POWER (W) OUTPUT CURRENT (mA) LUMEN (lm) COLOUR TEMPERATURE (K) CRI R9 BEAM ANGLE (°) FITTING COLOUR CARTON QUANTITY
DL170 CW WH 230 13 320 1380 4000 >90 >50 60 White 24
DL171 CW WH 230 18 450 1950 4000 >90 >50 60 White 24
DL172 CW WH 230 25 650 2750 4000 >90 >50 60 White 12
DL173 CW WH 230 35 900 3650 4000 >90 >50 60 White 6

Beam angle: 24°,36° Digital dimming (DSI, DALI)DIMMING: Analogue dimming (1~10V) Digital dimming (DSI, DALI) CASAMBI COLOUR TEMPERATURE: 3000K in stock

DATASHEET GDL36X SDOC GDL36X IES GDL361   GDL362 363 364 365 INSTALLATION GUIDE GDL36X
